Product line
Manufacturing of shafts, pins, sleeves, cylinders, connectors, flanges, special screws, rolled threads, and drawing-based subassemblies.
EQUIPMENT — INSTALLED CAPACITY
Capacity for simple components and critical geometries.
Kondak combines machining centers, CNC lathes, Swiss-type automatic lathes, centerless grinding, and auxiliary equipment to manufacture turned and machined parts with repeatability and control.
3 and 4 axes
vertical machining centers for technical geometries
Ø 3 to 76 mm
bar capacity range on CNC lathes
580 mm
machining length in dedicated operations
400 mm
maximum machining diameter in specific applications
OVERVIEW —
Practical capacity for different part profiles.
The production line supports shafts, pins, sleeves, cylinders, connectors, flanges, special screws, rolled threads, and subassemblies.
Machining capacity
Operations with CNC lathes, Swiss-type automatic lathes, machining centers, centerless grinding, thread rolling, and automatic tapping equipment.
Support network
Approved suppliers complement production with heat treatment, painting, surface treatment, welding, assembly, packaging, and forged parts.
Shop-floor control
An MES integrated with shop-floor machines supports real-time production monitoring and records by part/order.
SHOP FLOOR —
Equipment used in the main machining stages.
Equipment organized to cover core production, finishing, and support operations.

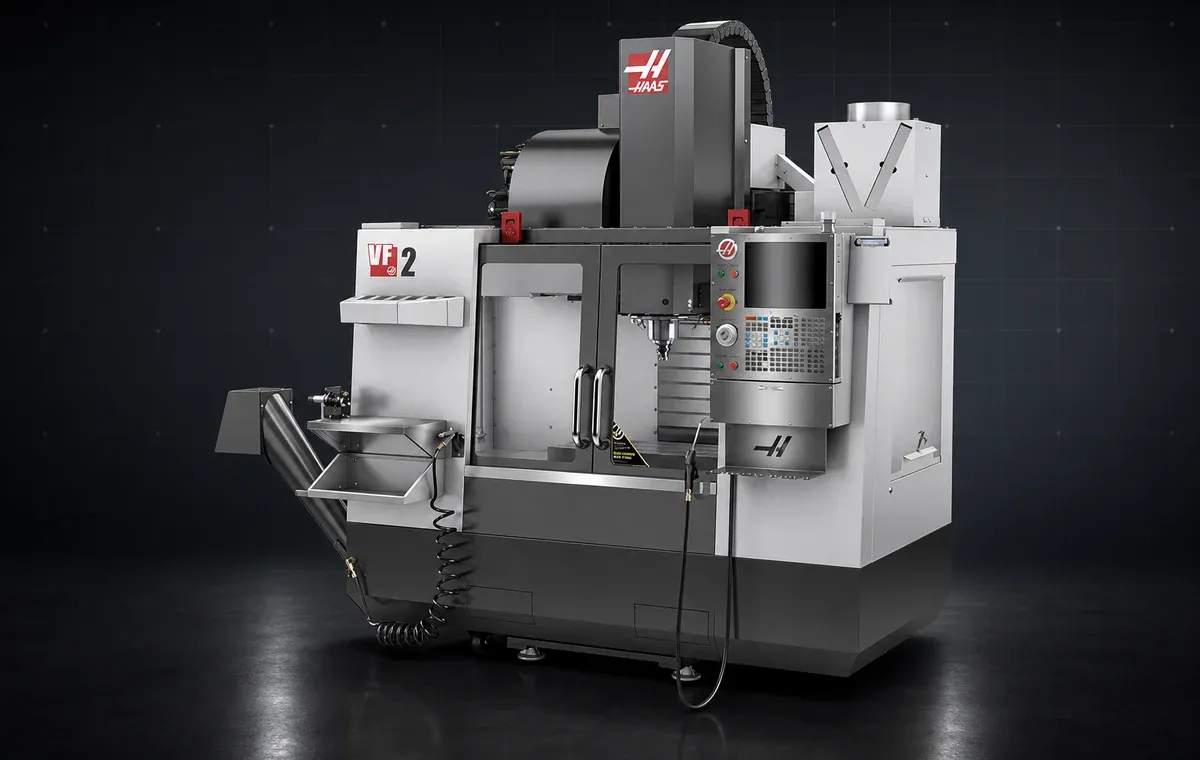

3 and 4-axis
machining centers
machining centers

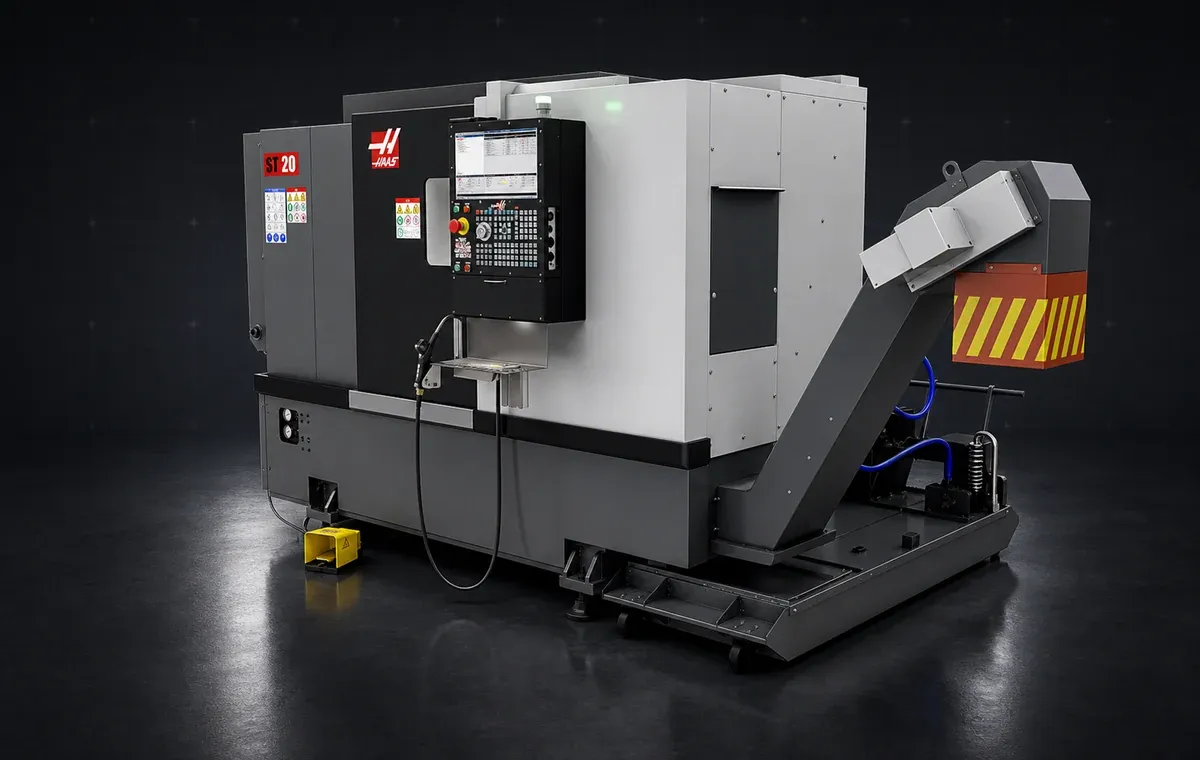

CNC lathes
for turned parts
for turned parts

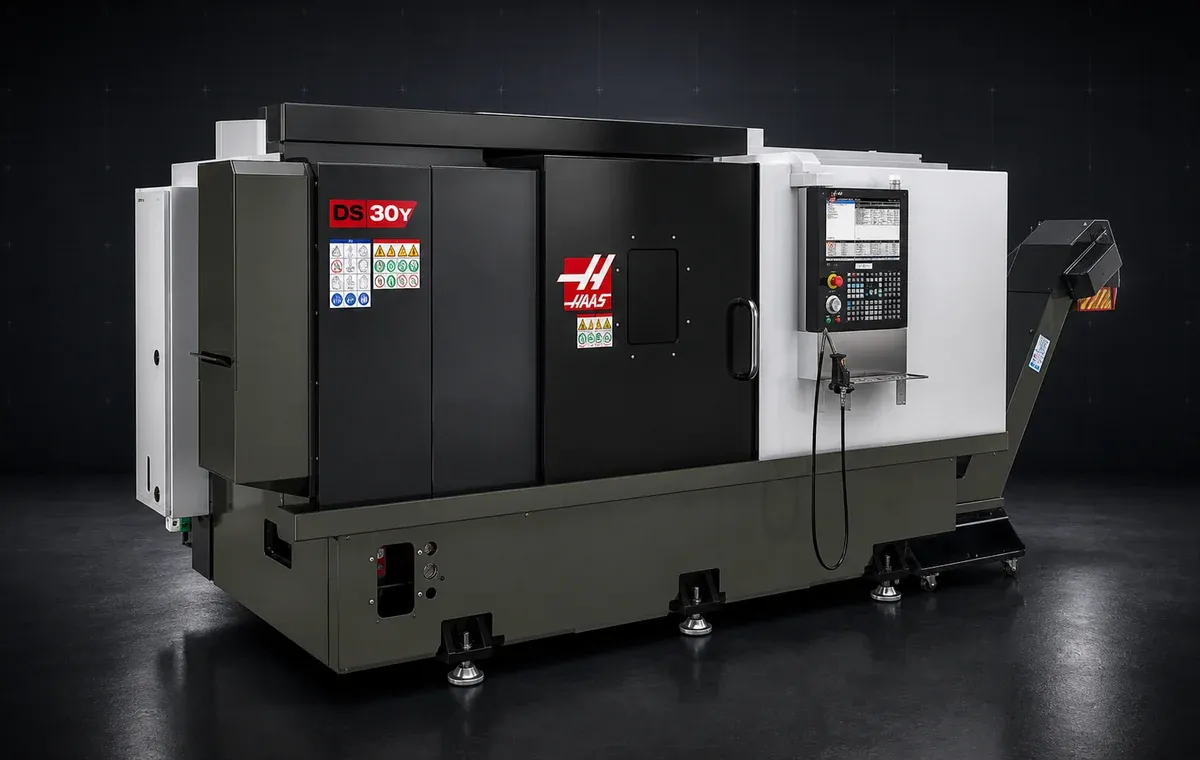

Turning
centers
centers

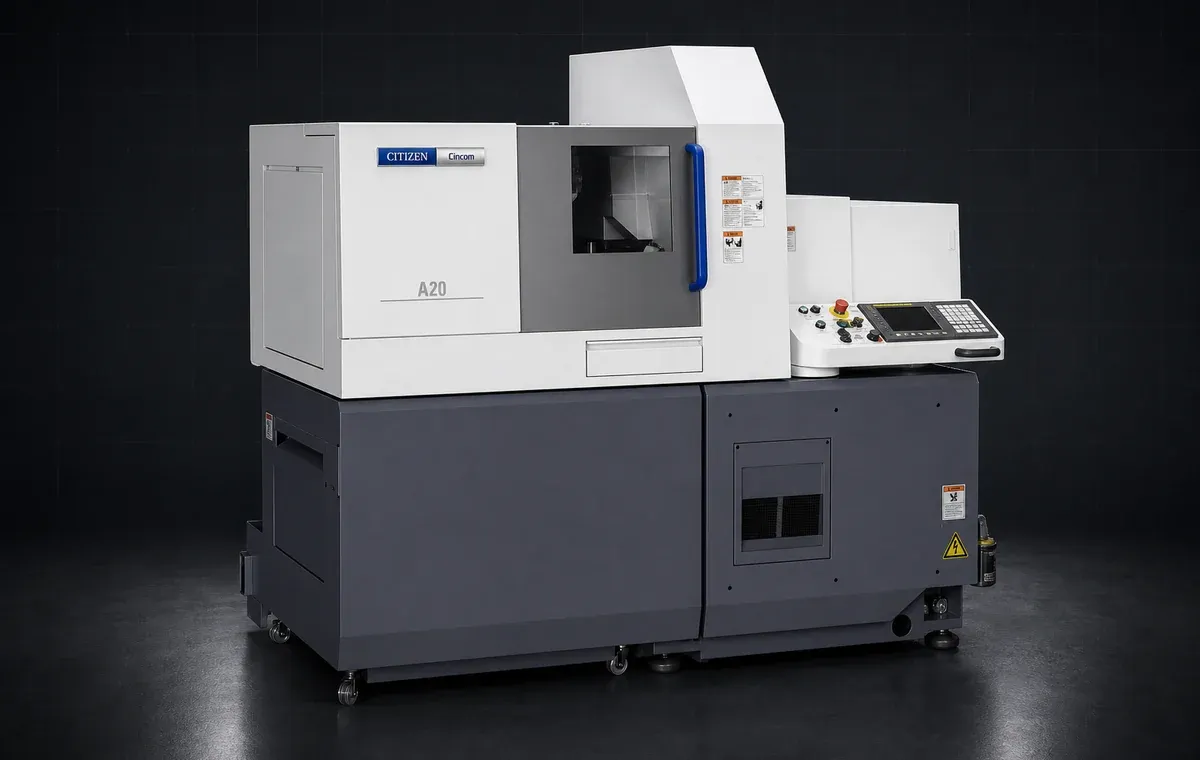

Swiss-type
automatic lathes
automatic lathes

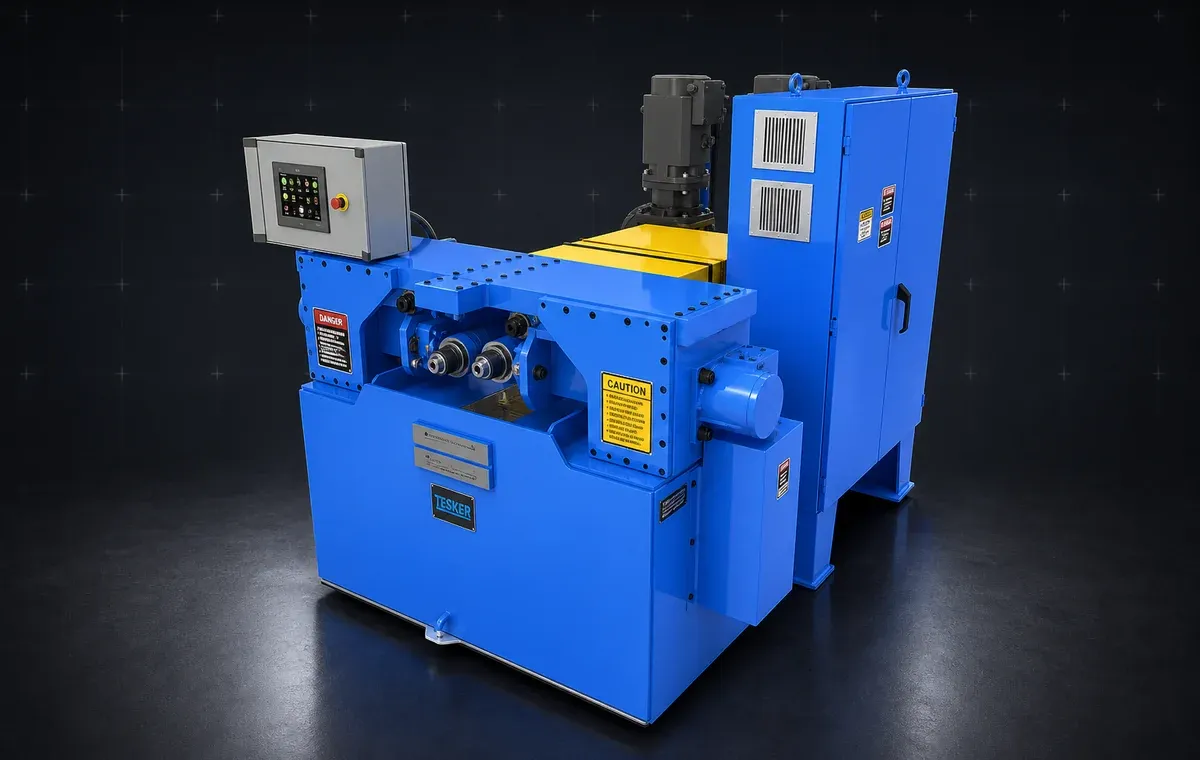

Threads and
auxiliary operations
auxiliary operations
EQUIPMENT LIST —
Resources available in the operation.
Vertical machining center
Automatic CNC lathes, Swiss-type lathes, and lathes with Y axis
Bar capacity from 3 mm to 76 mm
Machinable length up to 580 mm
Machinable diameter up to 400 mm
Centerless grinding
Toolroom milling machine
Thread rolling machine
Automatic tapping machines
Bench and column drilling machines
Subassembly operations
MES integrated with shop-floor machines
TYPICAL APPLICATIONS
The combination of CNC lathes, machining centers, and auxiliary equipment supports serial components as well as parts with higher geometric requirements, special threads, and finishing.
When needed, the team defines the process route based on geometry, tolerances, volume, and delivery timeframe.
The integrated shop-floor MES reinforces operational control with real-time production monitoring and records by part/order.
